Bag Filter Housings

BRAND:

Stainless steel bag support basket and hold-down device for proper seating of filter bags

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

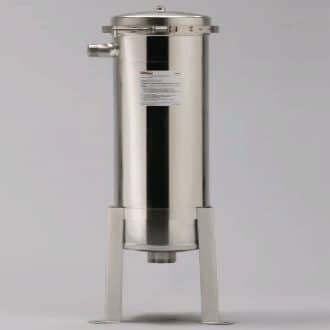

3M BHN BAG FILTER HOUSING
  • 2” MNPT inlet/outlet
  • ¼” FNPT port for vent valve/pressure gauge
  • Adjustable height Tri-pod legs
  • Clamp design lid for quick bag change-outs
  • Stainless steel bag support basket and hold-down device for proper seating of filter bags
  • Drain port at lowest point in housing to ensure no residual build-up or fluid loss
  • Can be used with standard or easily retrofitted for specialty DF style 3M bag filters

BHN Series bag filter housings for applications not requiring ASME code housings. BHN Series housings, for use with #1 and #2 Size conventional bag filters or 3M™ DF series filter elements, are available in single-round configurations. These housings are either 304 or 316L stainless steel construction, including support basket and hold-down device for proper seating of filter.

Differential pressures are for Size #2 bag housings based on an aqueous solution with viscosity of 1 cps with perforated support basket but with no bag installed. Consult the appropriate bag information to determine the total system pressure drop.

3M™ BHN Series Housings are rated for operation up to 150 psi @ 250¬¨‚àûF. Housing installation in a new or an existing system is made easy by the band clamp legs that can be adjusted up to 12 inches in floor-to-outlet height. These housings use heavy-duty 304L or 316L stainless steel construction for strength and durability.

Additional Information

SIZE

#1 or #2 bag filter size

CONSTRUCTION

AISI 316 or 304 stainless steel

SUPPORT BASKET

Standard or DF support basket
