Pipe screen combination DN 25 ( 2 CATEGORIES & SUB CATEGORIES)

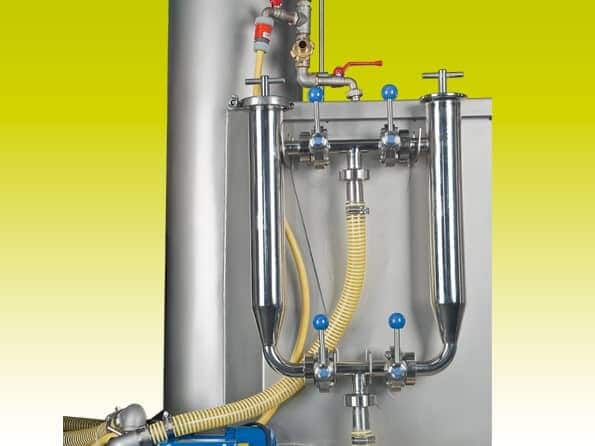

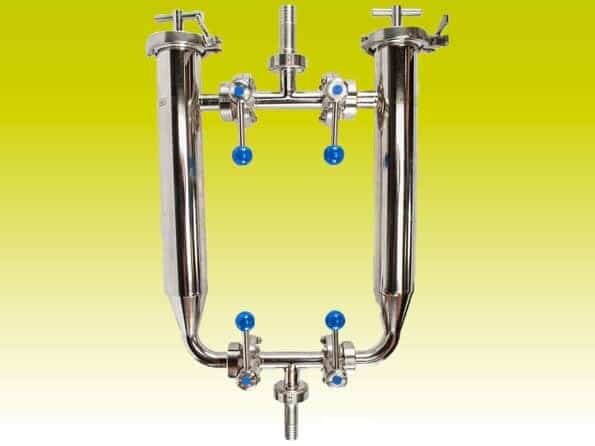

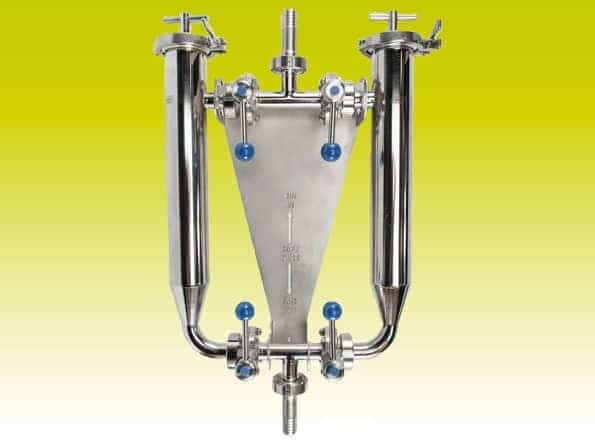

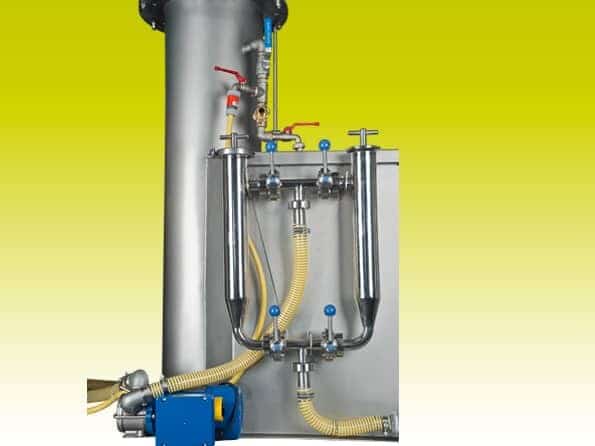

Pipe screen combination with 2 parallel stainless steel slotted screens for coarse filtering. Valves are provided to shut-off the screens individually for cleaning purposes.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Pipe screen combination with 2 parallel stainless steel slotted screens for coarse filtering. Valves are provided to shut-off the screens individually for cleaning purposes.

TECHNICAL DATA

Length 643 mm
Width 410 mm
Weight 14,5 kg
Material 1.4301 / AISI 304

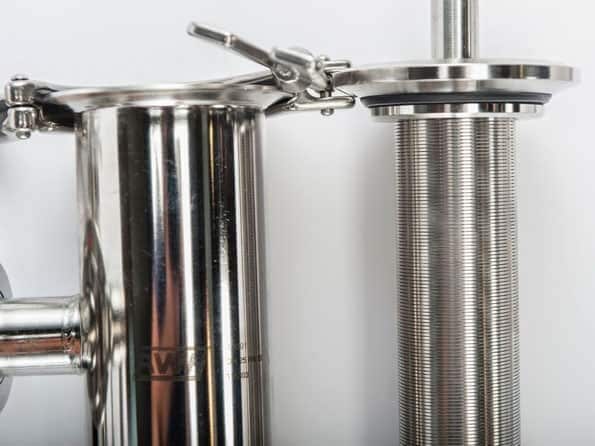

Scope of supply two pipe screens, flap valves and T-pieces fully-piped, with 0.25 mm cans, 2x connector with groove nut DN25

Product Enquiry

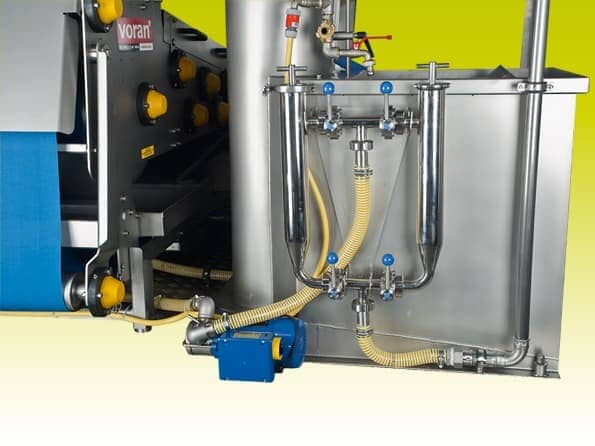

Production of apple juice with modular fruit processing system with belt press EBP500
