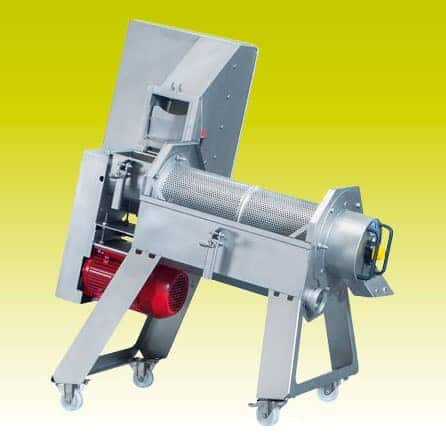

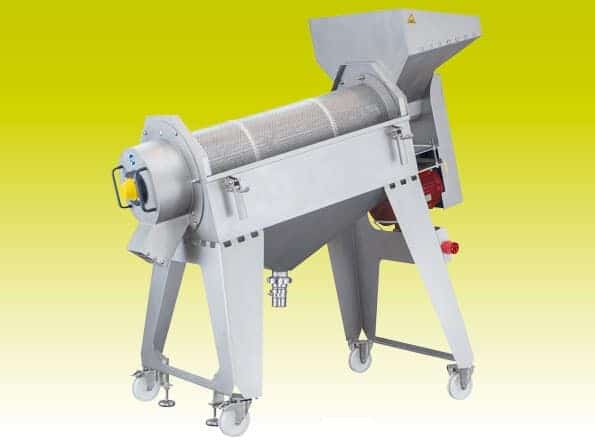

De-stoning machine EP1000

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.

TECHNICAL DATA

Nominal rating kg/h up to 1000 kg/h
Motor rating 5,5 (7,5) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1650 mm
Width 820 mm
Height 1670 mm
Discharge height 1640 mm
Weight 205 kg
Material 1.4301 / AISI304
Connection for mash pumps DN 65 AG
Height mash outlet 525 mm
Height stone outlet 615 mm

Product Enquiry

De-stoning and straining cherries and apricots with de-stoning machine EP1000
