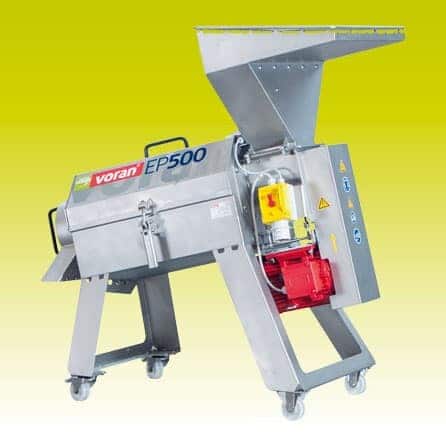

De-stoning machine EP500

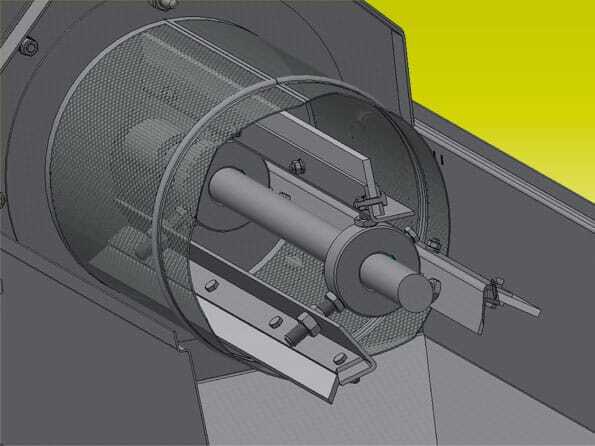

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.

TECHNICAL DATA

Nominal rating kg/h up to 500 kg/h
Motor rating 3,0 (4,0) kW (PS)
Connected load 400V 50Hz (3~)
Electrical protection 16 A
Length 1190 mm
Width 640 mm
Height 1250 mm
Discharge height 1250 mm
Weight 110 kg
Material 1.4301 / AISI 304
Connection for mash pumps DN 65 AG
Height mash outlet 340 mm
Height stone outlet 380 mm
