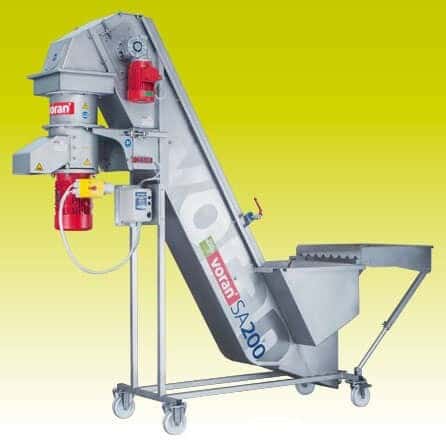

Elevator SA200 with pivoting centrifugal mill RM2,2

1000 kg/h. Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM2,2. The conveyor speed can be adjusted by using the integrated frequency converter.

CT Garagiste In-Stock ready to deliver

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM2,2. The conveyor speed can be adjusted by using the integrated frequency converter.

TECHNICAL DATA

Nominal rating kg/h 1000 kg/h
Motor rating Elevator 0,37 (0,5) mill 2,2 (3,0) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 2620 mm
Width 700 mm
Height 2100 mm
Discharge height 800 mm
Weight 185 kg
Material 1.4301 / AISI 305
Connection for cleaning ½” inside
Connection for washing vessel 1½” outside
Height mash outlet 1335 mm
Scope of supply with 9 mm and 16 mm cutting screen

CT Garagiste In-Stock ready to deliver

Product Enquiry

Video depicting Voran cider processing equipment at Elephant Island Cidery in Naramata, BC. Features the Voran Bin Tipper, Washer, Elevator, Mill and Continuous Belt Press.

onveying and milling carrots with elevator SA and attached centrifugal mill RM2,2

Production of apple juice or cider with belt press EBP350 with elevator SA and pivoting centrifugal mill RM2,2
