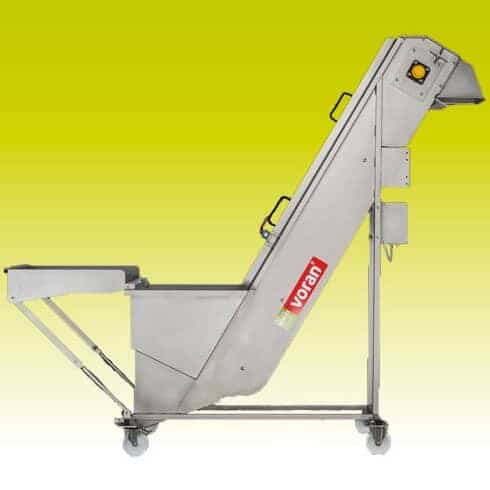

Elevator SA200 without centrifugal mill

1000 kg/h. Washing system consisting of sorting grid, washing vessel and chain conveyor. The conveyor speed can by adjusted using the integrated frequency converter.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

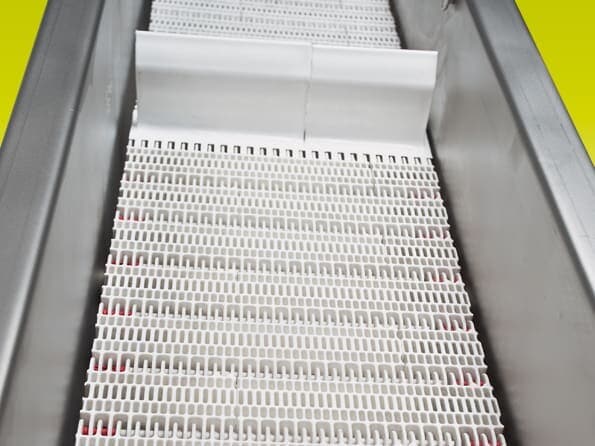

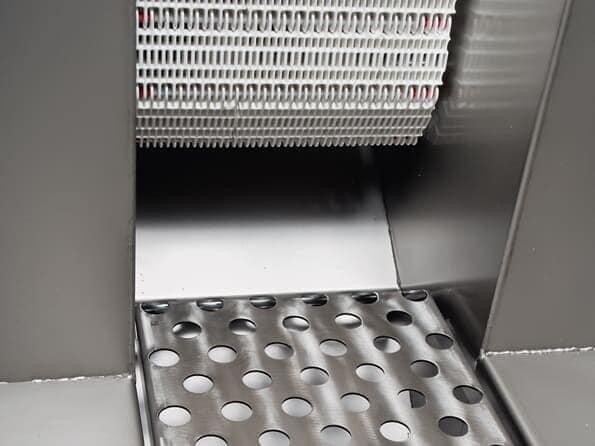

Washing system consisting of sorting grid, washing vessel and chain conveyor. The conveyor speed can by adjusted using the integrated frequency converter.

TECHNICAL DATA

Nominal rating kg/h 1000 kg/h
Motor rating 0,37 (0,5) kW (PS)
Connected load 230V 50Hz (single-phase)
Electrical protection 16 A
Length 2500 mm
Width 680 mm
Height 2080 mm
Discharge height 840 mm
Weight 150 kg
Material 1.4301 / AISI 304

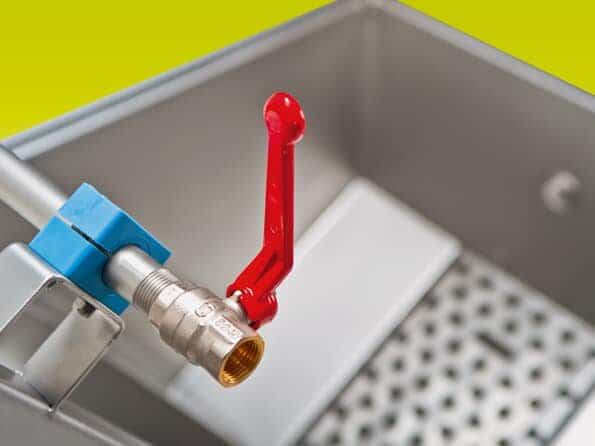

Connection for cleaning ½” inside
Connection for washing vessel 1½” outside
Height fruit outlet 1750 mm

Product Enquiry

Video depicting Voran cider processing equipment at Elephant Island Cidery in Naramata, BC. Features the Voran Bin Tipper, Washer, Elevator, Mill and Continuous Belt Press.

Conveying and milling carrots with elevator SA and attached centrifugal mill RM2,2
