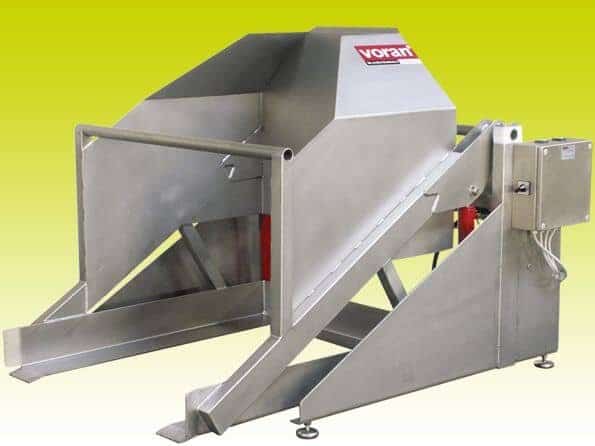

Voran Bin Dumper GKE 1250

The Voran Bulk bin lifter including hydraulic power unit for specialised bin sizes (LXWXH = 1250x1200x970). This bin dumper is for easy and consistent filling of washing systems.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Bulk bin lifter including hydraulic power unit for specialised bin sizes (LXWXH = 1250x1200x970). This bin dumper is for easy and consistent filling of washing systems.

TECHNICAL DATA

Motor rating 1,5 (2,0) kW (PS)
Connected load 400V 50Hz (3~)
Electrical protection 16 A
Length 1740 mm
Width 1720 mm
Height 1280 (tilted 2490) mm
Discharge height 850 mm
Weight 350 kg
Material 1.4301 / AISI 304
Lift force up to 550 kg / box
Duration of each pivot 20 sec.
Height mash outlet 900 mm
Width fruit outlet 500 mm
