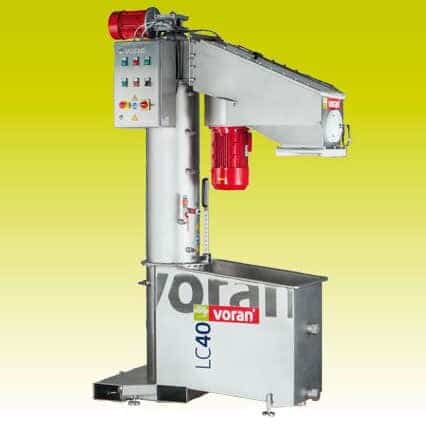

Washing and milling machine WA LC with RM40 for packing press 100P2 rotary cage

2000 kg/h. Washing system consisting of washing vessel, vertical auger-type elevator and add-on centrifugal mill RM40. The washing system is switched on and off automatically via an electrically-controlled metering system. The pivoting turret allows the upper section to be rotated through 90° to save space during operation and make cleaning easier.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Washing system consisting of washing vessel, vertical auger-type elevator and add-on centrifugal mill RM40. The washing system is switched on and off automatically via an electrically-controlled metering system. The pivoting turret allows the upper section to be rotated through 90° to save space during operation and make cleaning easier.

TECHNICAL DATA

Nominal rating kg/h 2000 kg/h
Motor rating 6,2 (8,5) kW (PS)
Connected load 400V 50Hz (3~)
Electrical protection 16 A
Length 2000 mm
Width 700 mm
Height 2200 mm
Discharge height 720 – 780 mm
Weight 285 kg
Material 1.4301 / AISI 304
Connection for cleaning 1/2 ” inside
Connection for washing vessel 2 ” outside
Height mash outlet 1270 mm
Height fruit outlet 800 mm
Scope of supply 12mm cutting screen

Product Enquiry

Video depicting Voran cider processing equipment at Elephant Island Cidery in Naramata, BC. Features the Voran Bin Tipper, Washer, Elevator, Mill and Continuous Belt Press.

Washing, conveying and milling of fruits and vegetables with a voran washing and milling system WA LC40

Production of apple juice with packing press 100P2 with rotating carriage and washing machine WACL
