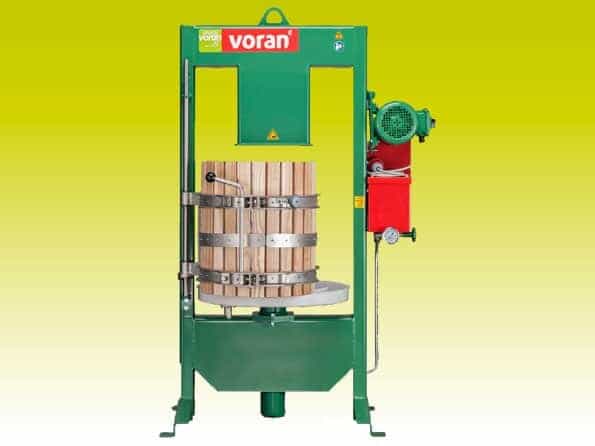

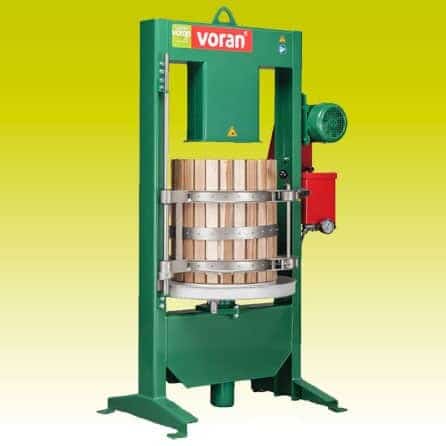

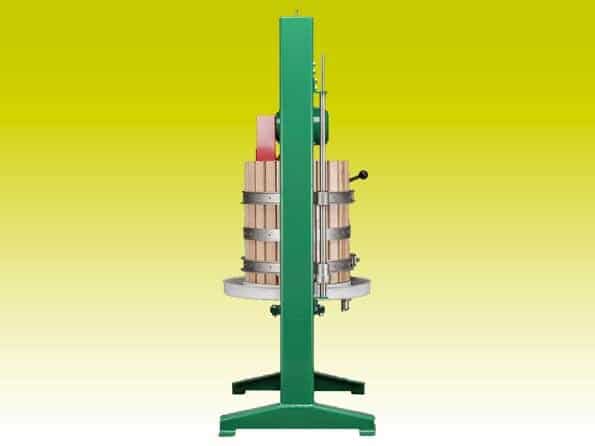

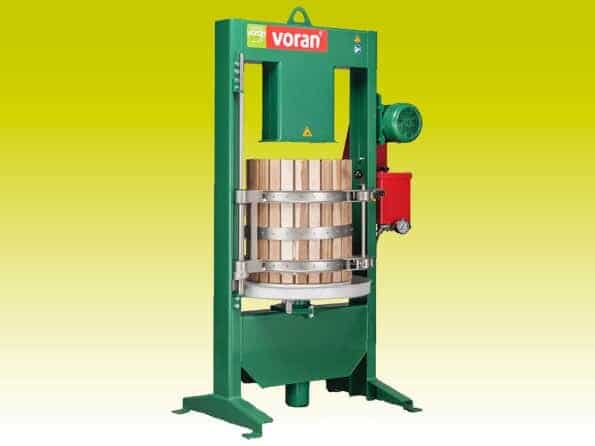

Basket press 60K

180 kg/h. Basket press with pivoting round basket and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

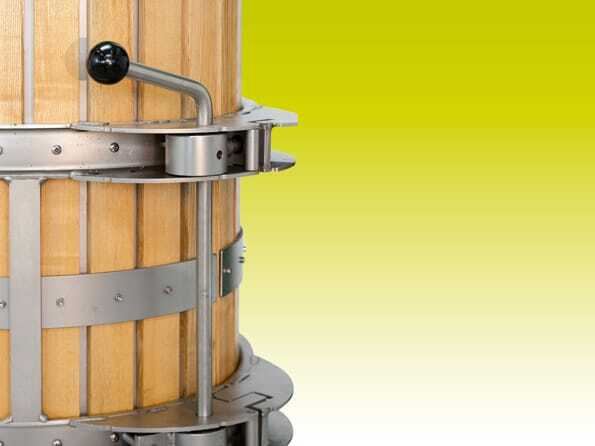

Basket press with pivoting round basket and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 180 kg/h
Motor rating 1,1 (1,5) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1080 mm
Width 800 mm
Height 1700 mm
Discharge height 1142 mm
Weight 185 kg
Material Juice basin from Polystyrene, basket in 1.4301 / AISI 304
Press force 16,1 to
Press pressure 320 bar
Juice yield 75 %
Connection for juice outlet ø30mm
Height juice outlet 480 mm
Height pomace ejector 642 mm

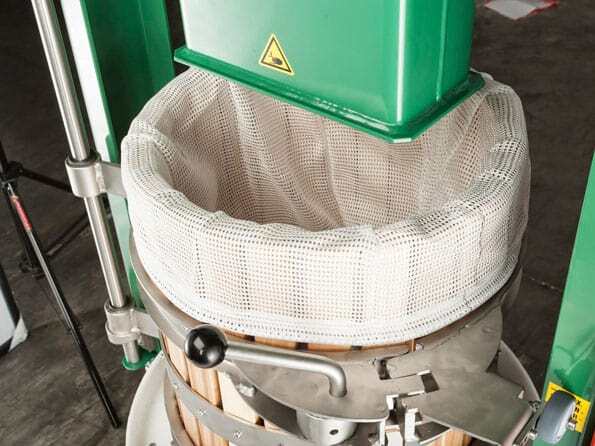

Scope of supply 1 press sack 60l, 3 sleeve inserts dia. 38cm, 3 press inserts in acacia wood dia. 38cm

Product Documents

Download PDF

Product Enquiry

Cider pressing with basket press 60K and attached centrifugal mill RM1,5
