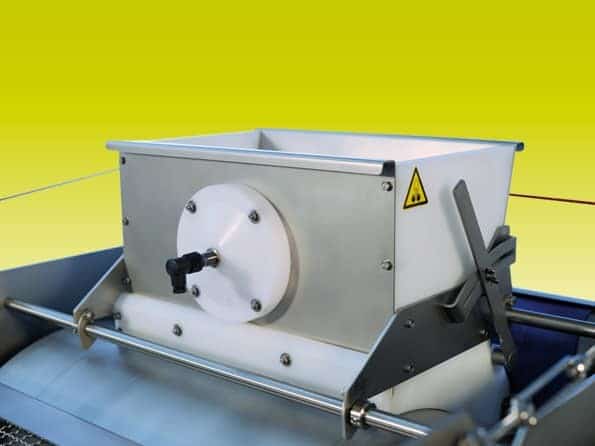

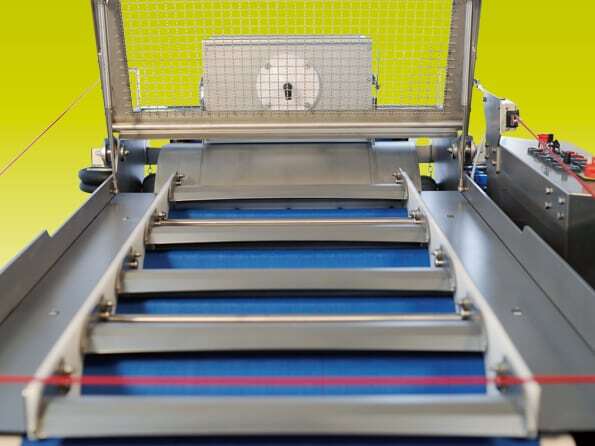

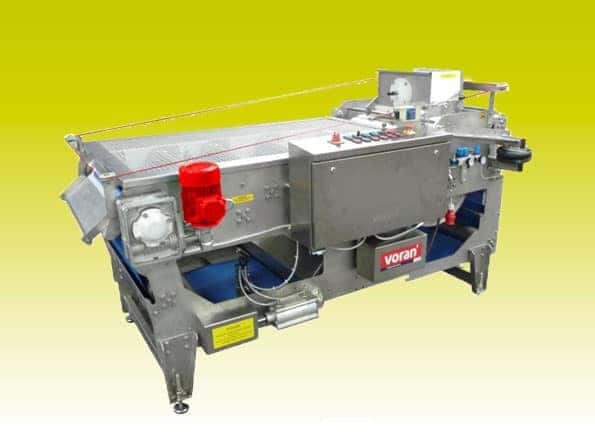

Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.
For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.
Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.
| Nominal rating kg/h | 1500 kg/h |
| Motor rating | Drive motor 0,55 (0,75) washing system motor 0,12 (0,16) kW (PS) |
| Connected load | 400V 50Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 2540 mm |
| Width | 1463 mm |
| Height | 1460 mm |
| Discharge height | 1460 mm |
| Belt width | 650 mm |
| Strip length | 8120 mm |
| Conveyor width | 450 mm |
| Conveyor height | 0-50 (infinitely-variable) mm |
| Weight | 1060 kg |
| Material | 1.4301 / AISI 304 |
| Juice yield | 75 % |
| Belt speed | 0,9 – 1,8 m/min |
| Contact time | 1,9 – 3,8 min |
| Water consumption for cleaning | 3 l/min |
| Connection for waste water | Ø75mm |
| Connection for juice outlet | 2″ |
| Height juice outlet | 400 mm |
| Height waste water drain | 210 mm |
| Height pomace ejector | 840 mm |
| Scope of supply | High pressure cleaner, compressor |
