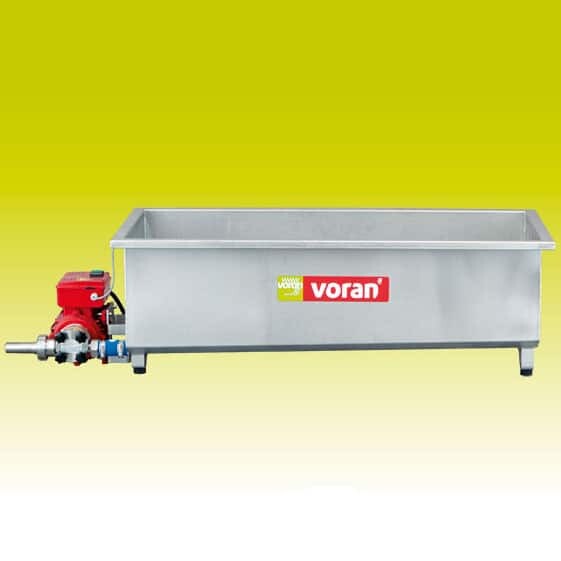

Juice collection tank 65l

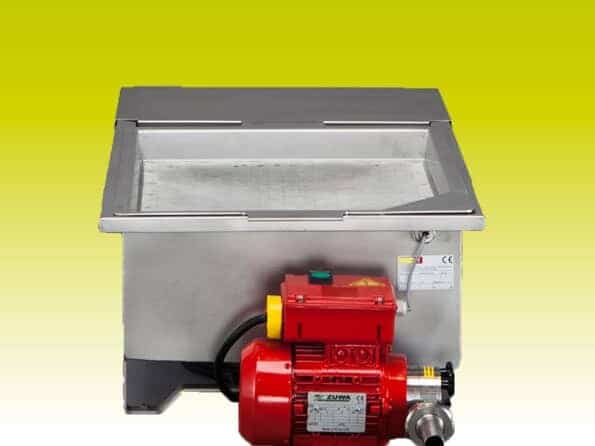

Collection basin with 1 mm coarse screen. Easy and safe operation thanks to fully automatic impeller pump.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Collection basin with 1 mm coarse screen. Easy and safe operation thanks to fully automatic impeller pump.

TECHNICAL DATA

Nominal rating l/h 1800 l/h
Motor rating 0,55 (0,75) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1250 mm
Width 508 mm
Height 290 mm
Weight 27 kg
Material 1.4301 / AISI 304
Connection for juice outlet 1 “

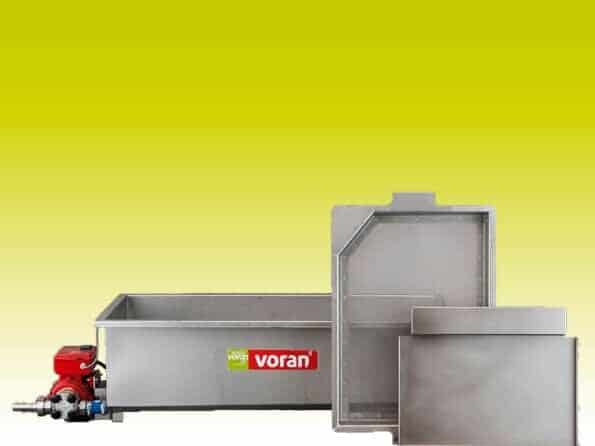

Scope of supply incl. 1mm screen
