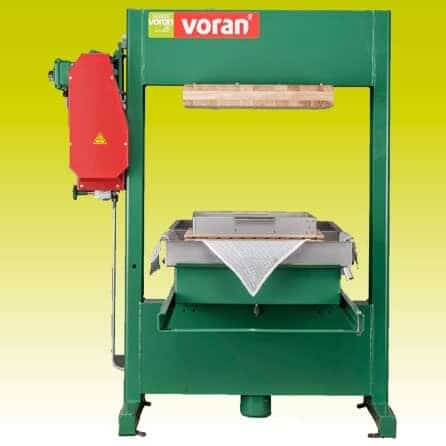

Packing press 100 P1 with shift press cage

300 kg/h. Packing press with moveable juice basin (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Packing press with movable juice basin (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 300 kg/h
Motor rating 1,5 (2,0) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1250 mm
Width 1210 mm
Height 1510 mm
Discharge height 1220 mm
Weight 270 kg
Material Packer frame and juice basin in 1.4301 / AISI 304
Press force 24 to
Press pressure 380 bar
Juice yield 75 %
Connection for juice outlet Ø30mm
Height juice outlet 420 mm
Scope of supply 9 press cloths 80×80 cm, 10 press inserts in acacia wood 50×50 cm

Product Documents

Product Enquiry

Production of apple juice with packing press 100P2.

*Note: the attached fruit mill option is not available in North America but the same process can be achieved with the freestanding RM series of centrifugal mills from VORAN.
