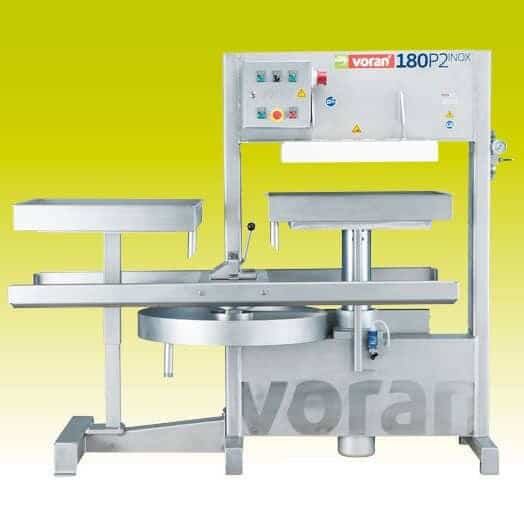

1200 kg/h. Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.
Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
| Nominal rating kg/h | 1200 kg/h |
| Motor rating | 2,2 (3,0) kW (PS) |
| Connected load | 400V 50Hz (3~) |
| Electrical protection | 16 A |
| Length | 2250 mm |
| Width | 850 mm |
| Height | 1870 mm |
| Discharge height | 1380 mm |
| Weight | 1020 kg |
| Material | 1.4301 / AISI 304 |
| Press force | 50 to |
| Press pressure | 270 – 320 bar |
| Juice yield | 75 % |
| Connection for juice outlet | 1 1/4 “ |
| Height juice outlet | 420 mm |
| Scope of supply | 22 press cloth 100x100cm + 24 press insert stainless steel 65x65cm |
