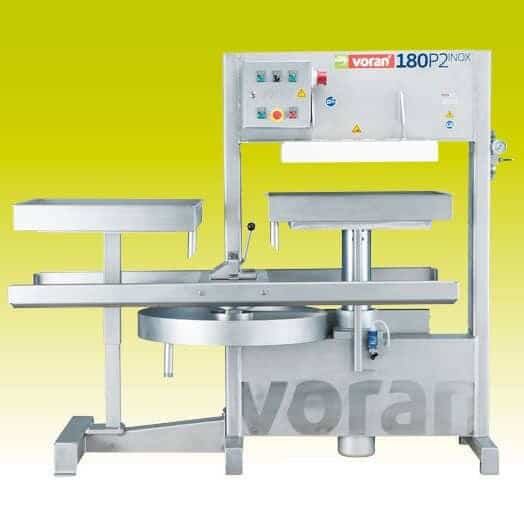

Packing press 180P2 Inox with lift/lower device

1200 kg/h. Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 1200 kg/h
Motor rating 2,2 (3,0) kW (PS)
Connected load 400V 50Hz (3~)
Electrical protection 16 A
Length 2250 mm
Width 850 mm
Height 1870 mm
Discharge height 1380 mm
Weight 1020 kg
Material 1.4301 / AISI 304
Press force 50 to
Press pressure 270 – 320 bar
Juice yield 75 %
Connection for juice outlet 1 1/4 “
Height juice outlet 420 mm
Scope of supply 22 press cloth 100x100cm + 24 press insert stainless steel 65x65cm
