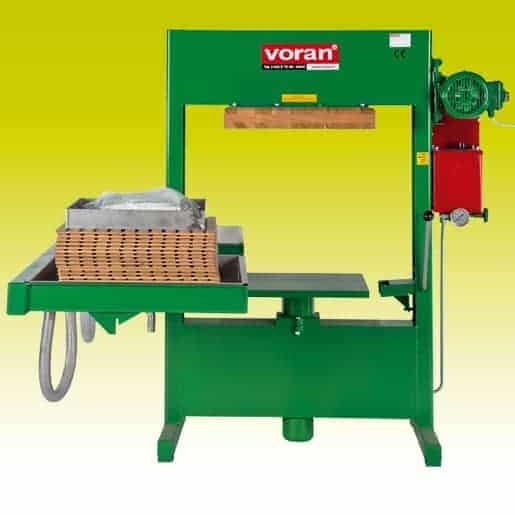

Packing press with rotary cage 100 P2

600 kg/h. Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

CT Garagiste In-Stock ready to deliver

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h 600 kg/h
Motor rating 1,5 (2,0) kW (PS)
Connected load 400V 50 Hz (3-phase)
Electrical protection 16 A
Length 2170 mm
Width 730 mm
Height 1510 mm
Discharge height 1220 mm
Weight 295 kg
Material Packer frame and juice basin in 1.4301 / AISI 304
Press force 24 to
Press pressure 380 bar
Juice yield 75 %
Connection for juice outlet Ø30mm
Height juice outlet 400 mm
Scope of supply 18 press cloths 80×80 cm, 20 press inserts in acacia wood 50×50 cm

CT Garagiste In-Stock ready to deliver

Product Documents

Product Enquiry

Production of apple juice with packing press 100P2 with rotating carriage and washing machine WACL
