Destemmers – “DINAMICA” Series

Destemmers - "DINAMICA" Series
Destemmers - "DINAMICA" Series - Image 2
Destemmers - "DINAMICA" Series - Image 3

BRAND:

MORI
SKU 264 Categories ,
MORI IMPIANTI ENCOLOGICI

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

 DINAMICA Series Destemmers

  • Constructed with AISI304 stainless steel
  • PVC roller cage, standard round holes with bevelled edges on both sides to reduce berry shearing
  • Roller cage available hole sizes: 19mm, 22mm, 24mm, 28mm or progressive hole size cage with 24-22-19mm holes
  • Rubber destemming paddles with adjustable length and orientation angle
  • Cage and Paddles rotate in same direction with VFD speed control for precise control of berry/stalk separation
  • Adjustable height telescopic legs with locking wheels for easy mobility on the crushpad (standard with DINAMICA 100, optional on DINAMICA 60)
  • Easy to disassemble for cleaning and changing roller cages
  • OPTIONAL: excludable, adjustable roller crushers with gap width of 4mm – 8mm and equipped with anti-breaking system composed of springs that are able to open the roller in the event of it being jammed with a foreign solid object (i.e. rock or mechanical part)

Additional Information

Available Models/Capacities:

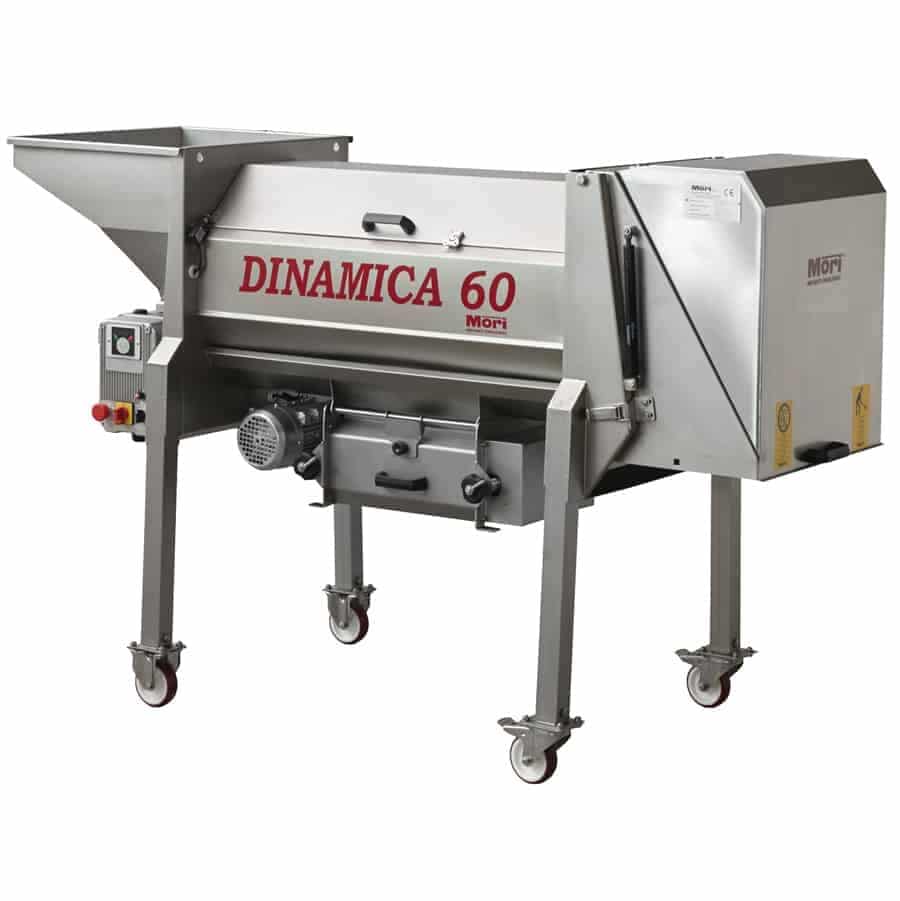

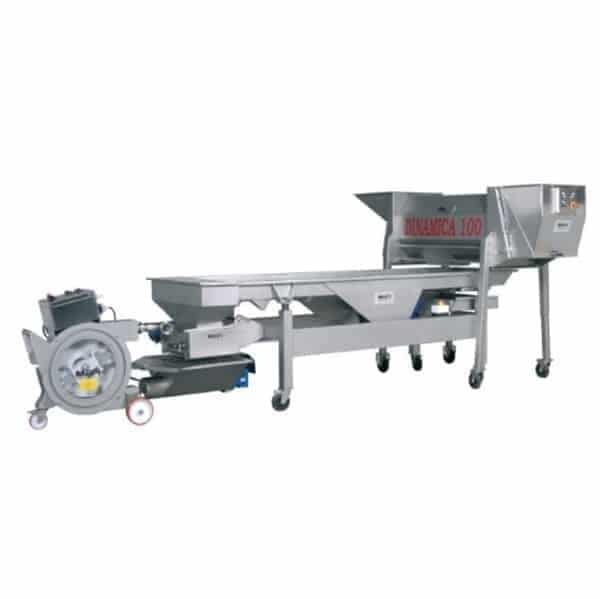

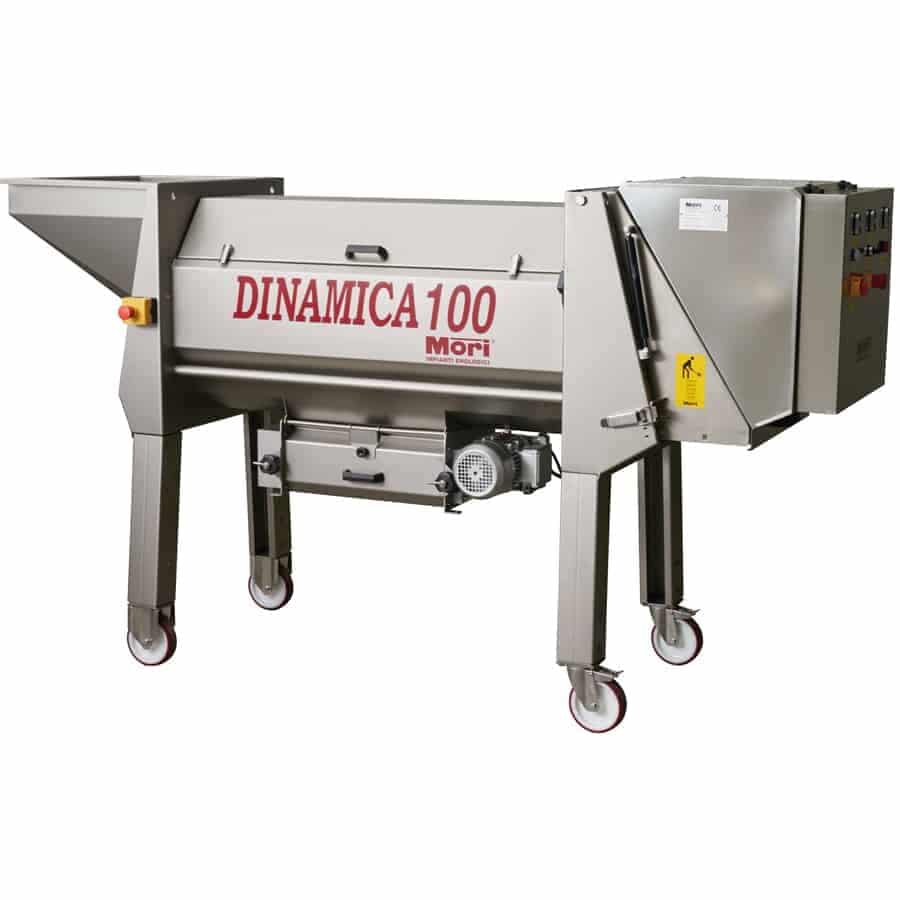

– DINAMICA 60 / 3-6 ton/hr (1.65 kW) – DINAMICA 100 / 4-11 ton/hr (2.25 kW)
Options:

– cage hole size 19mm / 22mm / 24mm / 28mm – telescopic adjustable height legs on DINAMICA 60 (standard on DINAMICA 100) – excludable, adjustable roller crushers with gap width range 4mm- 8mm
