Destemmers - "R" Series

BRAND:

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

 “R” Series Destemmers

The R series of destemmers and destemmer-crushers are renowned for their reliability. Perfected after almost a century of experience, Mori Luigi offers simple and effective solutions using one of the most famous de-stemming machines currently available.
  • Constructed from AISI304 stainless steel
  • AISI304 stainless steel standard roller cage w/24mm deep drawn holes for low shear of the grapes

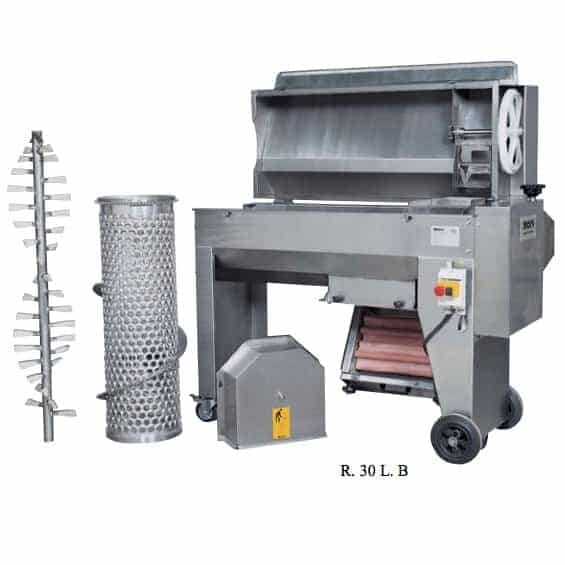

  • R30L model equipped with top-loading large hopper with auger for hand feeding with 36# picking lugs (auger speed is independent from destemmer cage speed)
  • VFD destemmer cage/paddles speed control
  • AISI304 stainless steel destemming paddles adjustable in length and orientation angle (rubber paddles available on request)
  • Models with roller crushers are detachable for easy cleaning
  • Available in 4 versions:
    • A – Direct discharge without crusher or collection hopper for use with whole berry destemming & must pump w/hopper (not included)
    • B – Direct discharge with detachable, adjustable crusher rollers with gap adjustment range of 4mm – 8mm
    • C – Direct discharge into collection hopper with TC fitting on drain for easy connection to pump for must transfer
    • D – Direct discharge with detachable, adjustable crusher rollers with gap adjustment range of 4mm – 8mm and collection hopper with TC fitting on drain

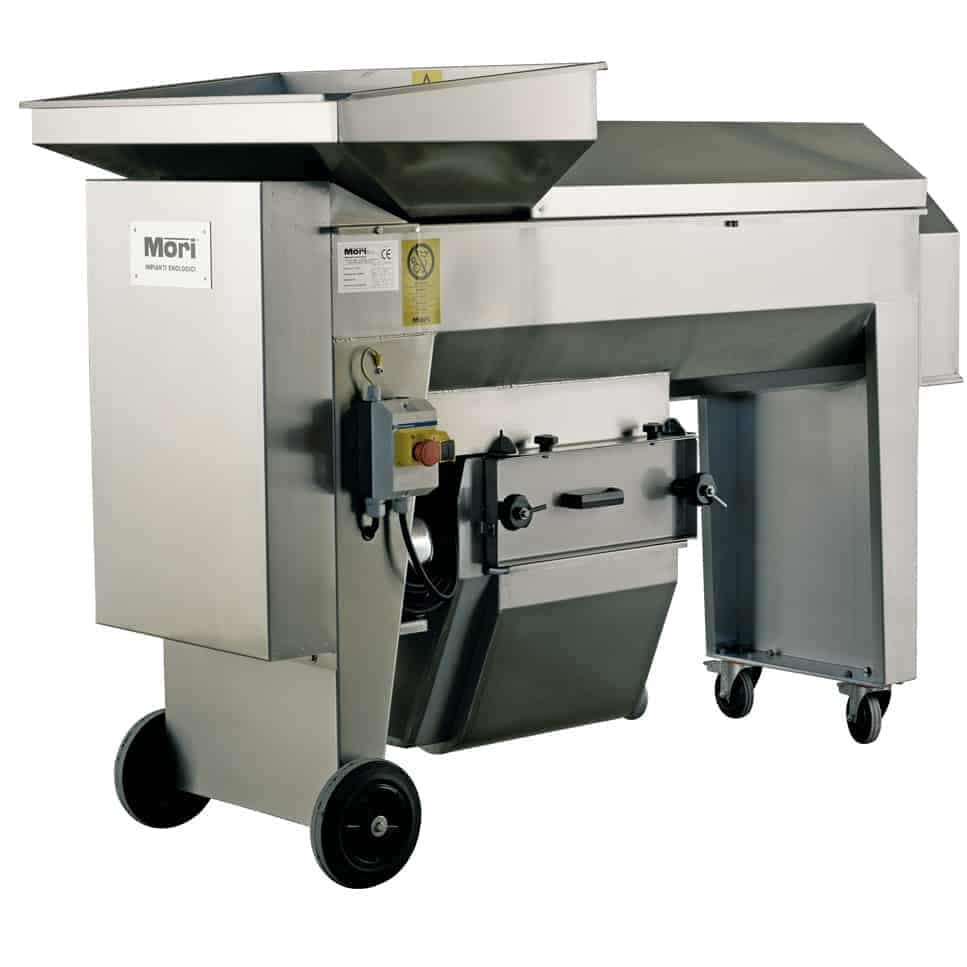

  • R30 & R30L capacity: 3-5 ton/hr

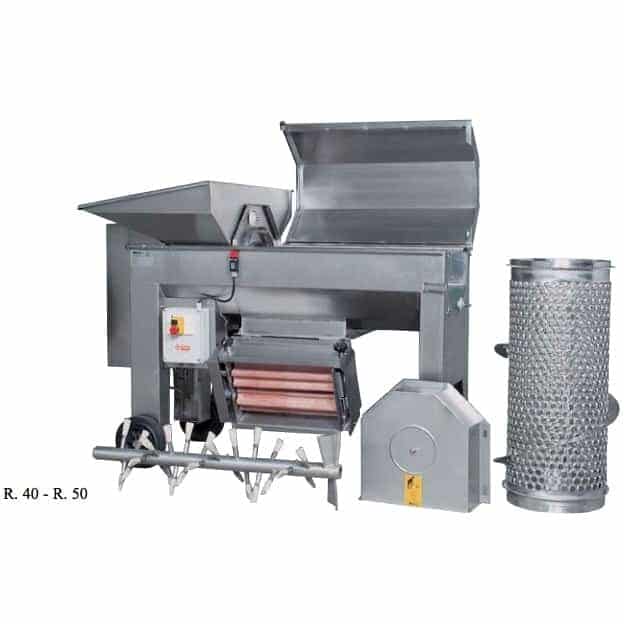

  • R40 capacity: 4-8 ton/hr

Additional Information

Models / Capacities:

– R30 / 3-5 ton/hr (1.5kW)
– R30L / 3-5 ton/hr (1.5 KW)
– R40 / 4-8 ton/hr (1.8 kW)

Options:

– adjustable detachable roller crusher
– must collection hopper with TC drain outlet fitting
– R30L – over-sizesd hopper with feed auger for hand loading with picking lugs
– poly destemmer cage with 19mm, 22mm, 24mm or 28mm holes
– rubber destemming paddles
