Zambelli Horizontal Pneumatic Press PN-ZETA Standard Version

Zambelli Horizontal Pneumatic Press PN-ZETA Standard Version

BRAND:

Zambelli Enotech
SKU 380 Categories , Tags , ,

The pneumatic PN ZETA presses play an important role in the production of top quality wines. They can press grapes in bunches, destemmed and fermented grapes and raisins at a very high hourly output.

ZAMBELLI ENOTECH

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

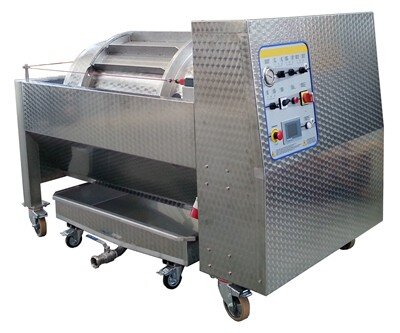

Zambelli Horizontal Pneumatic Press PN-ZETA Standard Version

The Zambelli Horizontal Pneumatic Press is entirely built in AISI 304 stainless steel. Any high quality components that we use (e.g. Becker compressors, Bonfiglioli reduction units etc.) are standard, and are pivoting, braking wheels.

Through a soft and gentle pressing of the membrane, our pneumatic presses PN ZETA play an important role in the production of top quality wines. They can press grapes in bunches, destemmed and fermented grapes and raisins at a very high hourly output.

Their loading can take place through one or several doors or through a axial loading. The press tanks are entirely closed, thus limiting the oxidation of the product and guaranteeing a very high quality of the must. The flow of the must takes place through inner drains and through the perforated loading door.

The new control board of the press is equipped with a PLC which is pre-programmed with 6 work cycles and 3 customizable cycles ; their run duration can be customized and all working processes can also be manually controlled.

There is also the possibility to mount watertight doors for carbonic maceration.

On request can be supplied the machine with perforated tank.

CUSTOMIZATION FRUIT PRESS OPTIONS AVAILABLE ON REQUEST:

  • Open cylinder, without draining channels
  • Small drip tray mounted on machine frame
  • Frame can be manufacture higher for unloading on bins or conveyors
  • Electric float on drip tray with possibility to connect impeller transfer pump



Capacity of loading whole grapes  Capacity of loading destemmed grapes
 Capacity of loading fermented grapes
 Ø axial loading valve
 Door dimension
 Dimensions Peso
PnZeta 6 450 Kg 800÷900 Kg 900÷1000 Kg 80 mm 600×470 mm 2000x1100x1350 mm 365 Kg
PnZeta 10 800 Kg 1500÷1600 Kg 1600÷1700 Kg 80 mm 700×470 mm 2500x12000x1440 mm 520 Kg
PnZeta 14 1000 Kg 2100÷2200 Kg 2200÷2300 Kg 80 mm 700×470 mm 2650x1300x1540 mm 470 Kg
PnZeta 17 1200 Kg 2600÷2700 Kg 2700÷2800 Kg 100 mm 700×470 mm 2750x1500x1600 mm 730 Kg
PnZeta 22 1600 Kg 3300÷3400 Kg 3500÷3600 Kg 100 mm n. 2 500×470 mm 3200x1500x1650 mm 805 Kg



TECHNICAL FEATURES :

  • Made with stainless steel AISI 304
  • Electric panel with touch display
  • Six preset programs, three customizable
  • Easy change of control box PLC
  • Possibility to work in manual mode back
  • Must collecting tank with wheels
  • Blower and compressor are included

OPTIONAL

  • VCA3 – Solid ball valve 3 inch For AXIAL loading- With pressure switch and loading pump
  • VCA4 – Solid ball valve 4 inch For AXIAL loading- With pressure switch and loading pump
  • VVR – 1″ 1/4 valve for must collecting tank
  • PZ0055 – Light abd acoustic advisor
  • HSP – Drip tray level sensor – with extraction pump plug
  • PST – Watertight Port
  • ON REQUEST 0 Raised structure press
