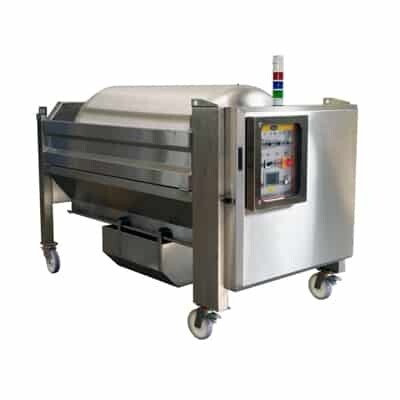

Zambelli Horizontal Pneumatic Press PN-ZETA TOP Version
The Zambelli Pneumatic Press PN-ZETA are entirely built in AISI 304 stainless steel. Any high quality components that we use (e.g. Becker compressors, Bonfiglioli reduction units etc.) are standard, and are pivoting, braking wheels.
Through a soft and gentle pressing of the membrane, our pneumatic presses PN ZETA play an important role in the production of top quality wines. They can press grapes in bunches, destemmed and fermented grapes and raisins at a very high hourly output.
Their loading can take place through one or several doors or through a axial loading. The press tanks are entirely closed, thus limiting the oxidation of the product and guaranteeing a very high quality of the must. The flow of the must takes place through inner drains and through the perforated loading door.
The new control board of the press is equipped with a PLC which is pre-programmed with 6 work cycles and 3 customizable cycles ; their run duration can be customized and all working processes can also be manually controlled.
There is also the possibility to mount watertight doors for carbonic maceration.
On request can be supplied the machine with perforated tank.
CUSTOMIZATION AVAILABLE ON REQUEST:
- Open cylinder, without draining channels
- Small drip tray mounted on machine frame
- Frame can be manufacture higher for unloading on bins or conveyors
- Electric float on drip tray with possibility to connect impeller transfer pump
|Capacity of loading whole grapes||Capacity of loading destemmed grapes
||Capacity of loading fermented grapes
||Ø axial loading valve
|PnZeta 14 TOP||1000 Kg||2100÷2200 Kg||2200÷2300 Kg||80 mm||700×470 mm||2650x1300x1540 mm||470 Kg|
|PnZeta 17 TOP||1200 Kg||2600÷2700 Kg||2700÷2800 Kg||100 mm||700×470 mm||2750x1500x1600 mm||730 Kg|
|PnZeta 22 TOP||1600 Kg||3300÷3400 Kg||3500÷3600 Kg||100 mm||n. 2 500×470 mm||3200x1500x1650 mm||805 Kg|
TECHNICAL FEATURES :
- Satinated stainless steel AISI 304 frame
- Drop collection tray Mounted and sliding with the
- tray level centsExtraction pump clock
- 7 inch touch display
- 3 setting modes
- Easy change of control box and PLC
- Stainless steel window protection for Electrical box
- VCA3T – Solid ball valve 3 inch For AXIAL loading- With pressure switch and loading pump
- VCA4T – Solid ball valve 4 inch For AXIAL loading- With pressure switch and loading pump
- VVR – 1″ 1/4 valve for must collecting tank
- PZ0055 – Light abd acoustic advisor
- HSN – Pneumatic and watertight closing door
- PST – Watertight Port
