Cleated Inclined Conveyors

Cleated elevator conveyors for whole bunches and destemmed grapes

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

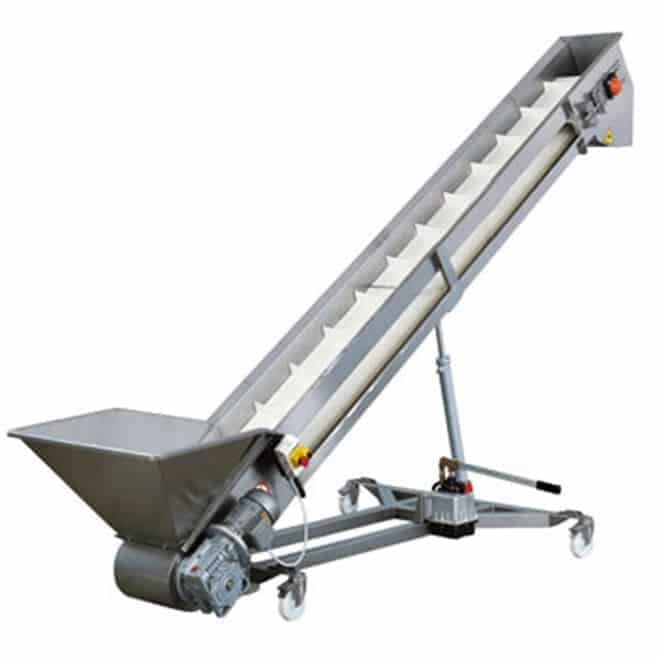

Cleated Inclined Conveyors
  • Entirely manufactured with  AISI 304 stainless steel
  • Electronic speed control with VFD
  • Lowered hopper – standard
  • Washing bar for cleaning backside of belt
  • Hydraulically adjustable incline from 30 -45 degrees (to affect discharge height)
  • Locking swivel wheels
  • Open design makes it easy to clean
  • Available in 2500mm, 3500mm, 4500mm, 5500mm, 7000mm conveyor lengths
  • OPTIONAL: Free-standing 400kg over-sized hopper on support frame, 4 legs w/locking swivel wheels
  • OPTIONAL: 500L over-sized hopper attached attached to elevator replacing standard hopper
  • OPTIONAL: Adjustable rotating discharge chute for directional product discharge

Additional Information

Conveyor Lengths:

– 2.5m, 3.5m, 4.5m, 5.5m, 7.0m

Options:

– 400kg free-standing over-sized hopper with support frame, locking swivel wheels and PVC discharge curtain to direct fruit onto elevator
– 500L over-sized hopper attached to elevator replacing the standard hopper
– Adjustable rotating discharge chute for directional product discharge
