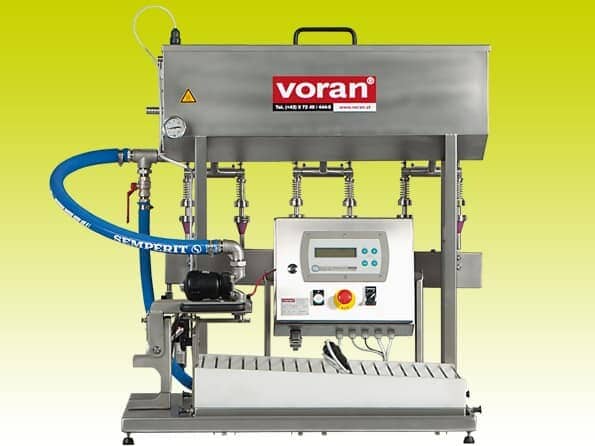

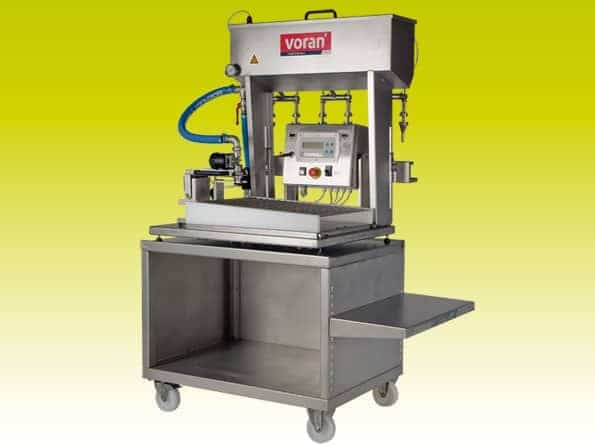

Bag-in-Box filling machine MBF 750-R6 (with 6-positions line filler)

Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags or 0.25 – 2 l bottles.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags or 0.25 – 2 l bottles.

TECHNICAL DATA

Nominal rating l/h 750 (with 10l Bags) l/h
Connected load 230V 50Hz (single-phase)
Electrical protection 16 A
Length 1030 mm
Width 810 mm
Height 1065 mm
Weight 100 kg
Material 1.4301 / AISI 304
Filling accuracy ± 0,5 %
Compressed air connection 6 bar
Connection for juice inlet Ø21,3

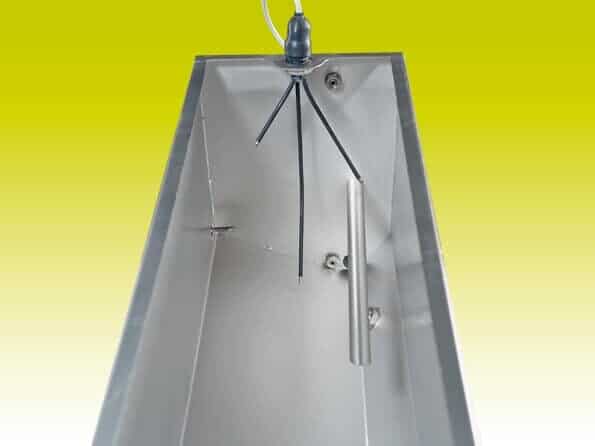

Juice vessel 58 l
Scope of supply incl. cleaning adapter

Product Documents

Product Enquiry

Pasteurizing of fruit juice with a voran pasteurizer PA750 (gas-powered) and filling with a manual bag in box filling system 750 with intergrated bottler filler.
