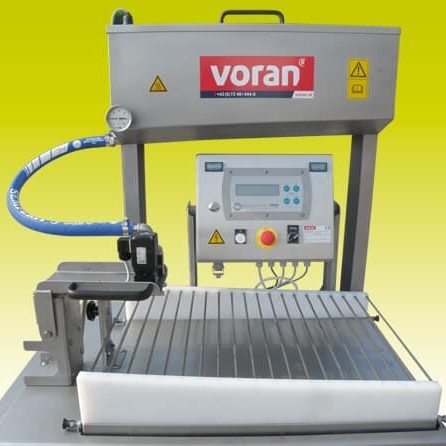

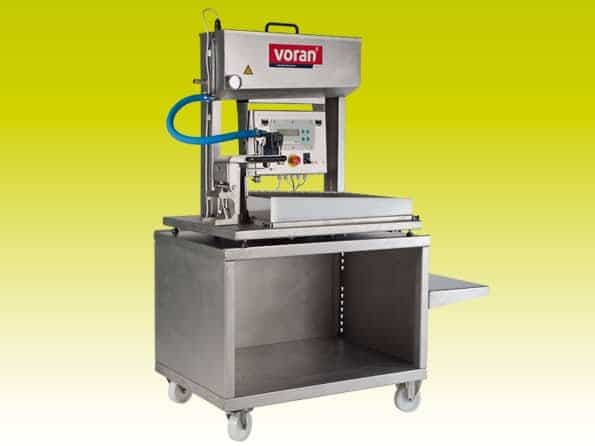

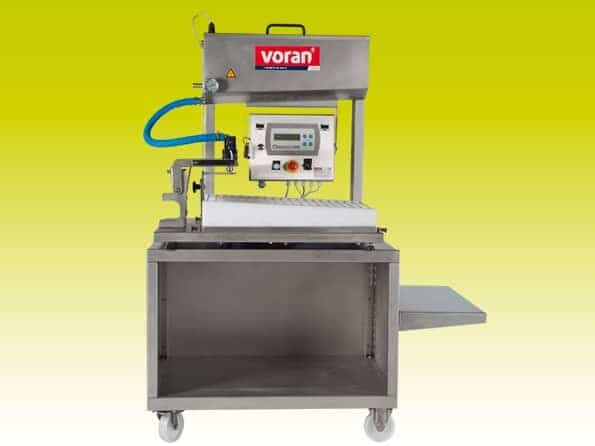

Bag-in-Box filling machine MBF500

Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags.

For more information regarding this particular product
please use the Product Enquiry Tab Below.
For any other Enquires please use our Contact Us Form.

Product Description

Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags.

TECHNICAL DATA

Nominal rating l/h 500 (with 10l Bags) l/h l/h
Connected load 230V 50Hz (single-phase)
Electrical protection 13 A
Length 930 mm
Width 700 mm
Height 925 mm
Weight 70 kg
Material 1.4301 / AISI 304
Filling accuracy ± 0,5 %
Connection for juice inlet Ø21,3
Juice vessel 40 l
Scope of supply incl. cleaning adapter

Product Enquiry

Operation of pasteurizer PA300 and filling with semi-automatic Bag in Box filling system MBF500
